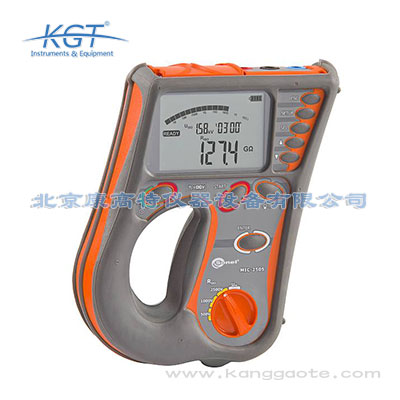

MIC-2505絕緣電阻測試儀

品牌：波蘭SONEL(索耐)
分類：絕緣電阻測試儀
應用領域：
測試對象：
國際標準：
國家標準：

聯系方式：010-68460051
Tel：13520131150

立即詢價

MIC-2505絕緣電阻測試儀簡介：
?INSULATION RESISTANCE MEASUREMENT UP TO 2T IN ACCORDANCE WITH IEC 61557 - 2
?Insulation resistance measurements:
selectable measurement voltage 500, 1000 V or 2500 V
continuous indication of measured insulation resistance or leakage current value
automatic discharge of measured object capacitive voltage after the completion of insulation resistance measurement
acoustic signaling of 5 seconds time intervals to facilitate capturing time characteristics
metered T1, T2 and T3 test times (15,60 and 600 s or 30,60 and 600 s) for measuring two absorption coefficients (DAR, PI, Ab1, Ab2)
indication of actual test voltage during measurement
protection against measuring live objects
?Insulation resistance measurement method for two-and three-wire
?Measurement of leakage current during insulation resistance testing
?DC and AC voltage measurement in the range of 0…600 V
?Power supply from battery packs
?The instruments meet the requirements of the EN 61557 standard
